A properly designed HIPPS system can substantially reduce CO2 emissions as well as the size and cost of an associated flare system.
High Integrity Pressure Protection Systems are designed to enhance or replace over pressure protection traditionally addressed with mechanical relief and flare systems.
Unlike a mechanical relief or flare system, a HIPPS system is designed to close the valves and isolate the process at its source when an over-pressurization event is detected. This eliminates the loss of product and fugitive emissions associated with relief systems.
HIPPS has a relatively low-cost compared to the total installed and commissioned cost of a flare system and the associated header piping.
Spartan and Emerson are able to provide full Turnkey Systems for HIPPS including:
SIL Certified Automation Components
HIPPS Cabinet Design, Fabrication and Configuration
Valve Assembly & Testing
SIL Verification Calculations
Partial Stroke Test Calibration and Training
Complete System FAT

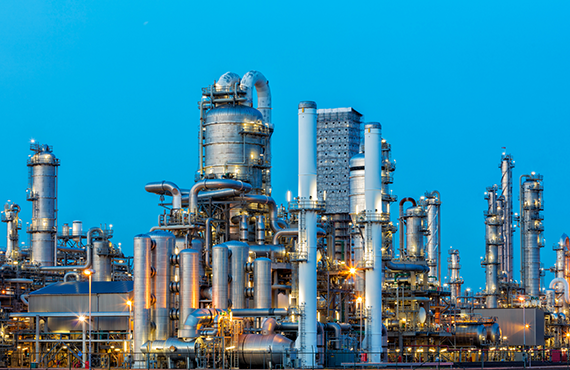

Inlets to industrial applications for over pressure include Refineries, Petrochemical Facilities, NGL Fractionation Facilities, and Power Plants:
Compression & Pumping Systems
Natural gas gathering systems
Interstate pipeline systems
Dew point processing plants
Underground storage facilities and terminals as well as vessel, train and truck loading facilities

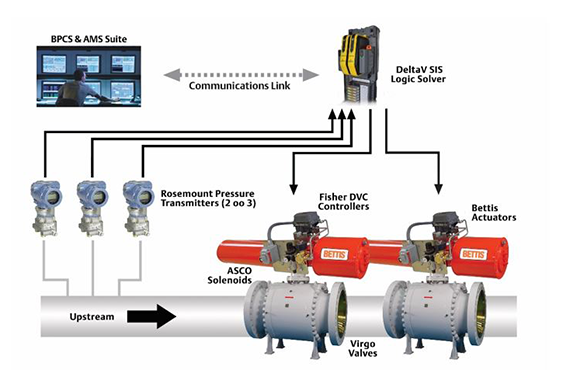

HIPPS is designed to close the valve and isolate the process at its source when an over pressurization event is detected

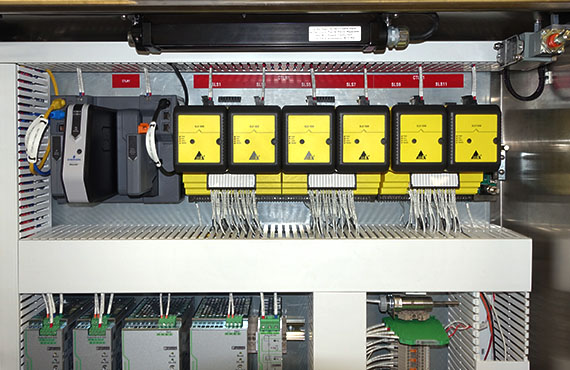

Controlled by DeltaV SIS
