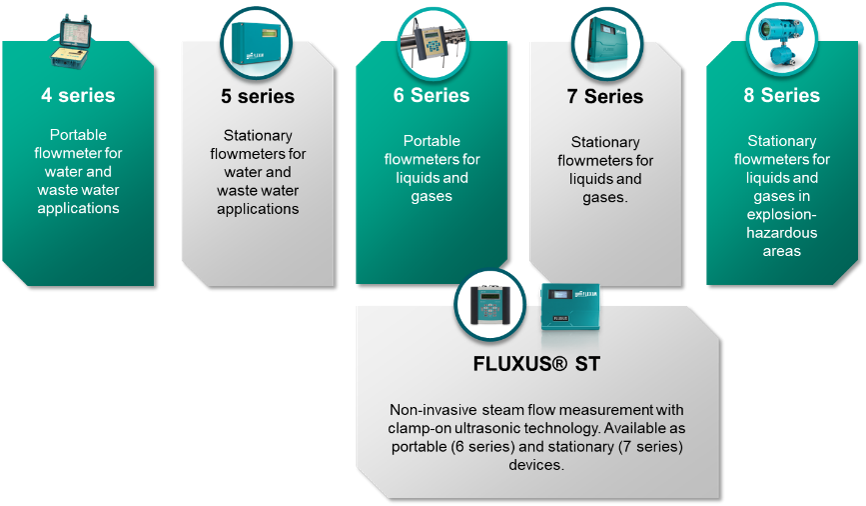

FLOWMETERS
Permanent & Clamp-On
PROCESS ANALYZERS
Gas Flowmeter
Fluxus G721

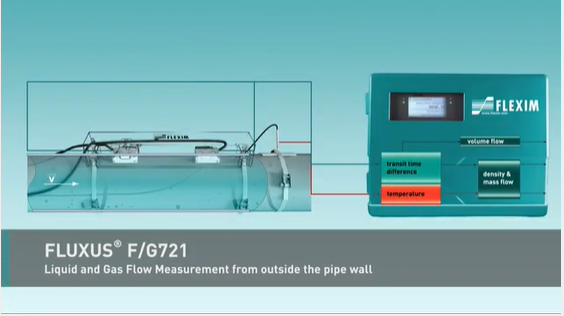

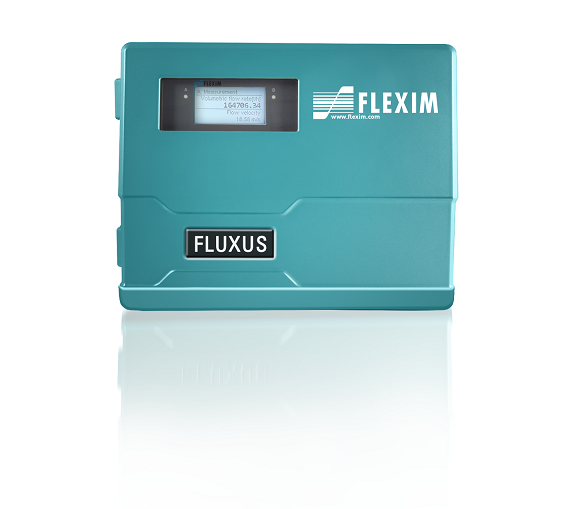

The FLUXUS G721 clamp-on gas flow meter offers non-intrusive flow measurement:
- virtually any kind of gas (from natural gas to process gases).
- over a wide pipe diameter range (from 0.25 to 80 inches), independent of wall thickness, material and internal pressurization.
- no maximum pressure limitation and starting from as low as 45 psi at steel lines and below atmospheric pressure at plastic pipes).
- Even hot gas up to +390°F isn't a challenge for the FLUXUS G721 gas flow meter.
Gas Flowmeter
Fluxus G608

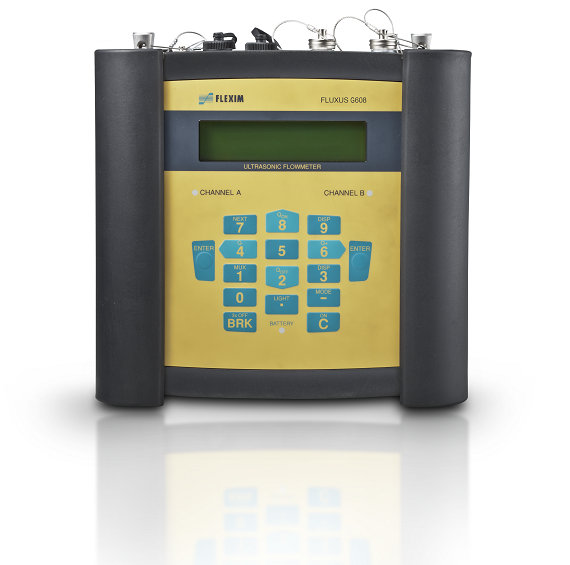

The new FLUXUS G608 portable gas flow meter is based on the widely used, highly reliable and versatile G601:
- specifically engineered for its use within hazardous areas and is FM Class I, Div. 2 approved.
- An extremely resistant carbon fiber housing, together with its rugged transducer design, resistance against oil, water and many other liquids.
- The G608 portable gas flow meter has the same efficient battery management system as the G601, offering over 14 hrs. of remote measurement time.
- Its application range is unrivalled - from pipes as small as 0.25 to 63 inches inner diameter and temperatures ranging from 14°F to 392°F.
Brochure Data Sheet Request A Quote
Gas Flowmeter
Fluxus G831
The FLUXUS G831 gas flow meter is a high performing ultrasonic clamp on meter:
- specifically designed for measurement of dynamic flows in hazardous areas (ATEX, IECEx Zone 1 and FM Class I, Div. 1 approved).
- perfectly suited for demanding industrial and process applications in and out of the oil field and the chemical industry.
- explosion proof housing, compact design, and the corrosion resistant ATEX, IECEx Zone 1 – FM Class 1. Div. 1 rated transducers mounted in “fit for purpose” rugged mounting fixtures, the system’s mechanical stability and permanent contact with the pipe surface is assured.
Gas Flowmeter
Fluxus G722

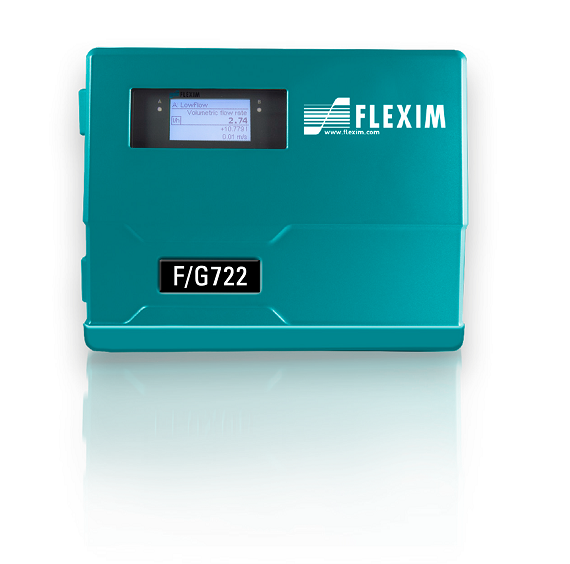

The FLUXUS G722 gas flow meter is a high performing ultrasonic clamp on meter:
- specifically designed for measurement of dynamic flows in the process industry.
- faster processing capabilities, advanced diagnostics, bidirectional communication protocols, digital outputs and process inputs.
- the G722 offers ease of installation, retrofittable design, accuracy, and outstanding performance.
- Using the new Synchronized Channel Averaging method (SCA), the G722 ultrasonic flow meter sends signals both in the direction of the flow and against the flow every 1millisecond.
Gas Flowmeter

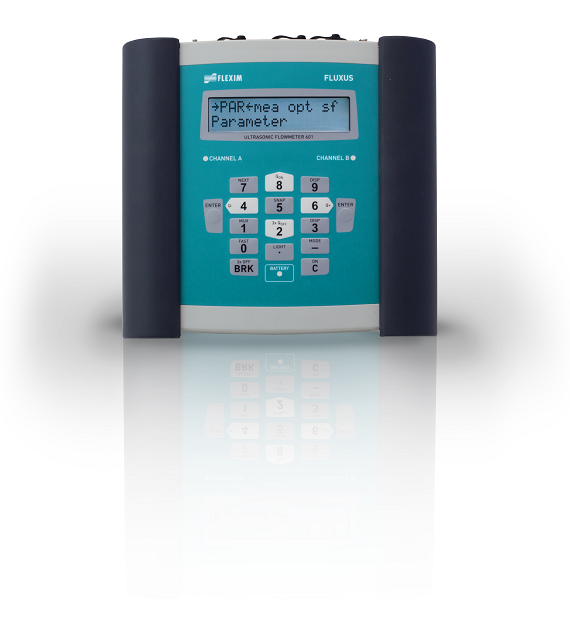

Fluxus G601
The FLUXUS G601 portable clamp-on ultrasonic gas flow meter:
- measures the flow of virtually any gas using FLEXIM’s proven transit-time correlation technique.
- allows for an inherently bi-directional gas flow measurement of operational and standard volume flows.
- featuring an ergonomic design, which offers simple handling and maximum ease of use, the G601 was designed to easily withstand rough industrial environments.
Gas Flowmeter
WaveInjector

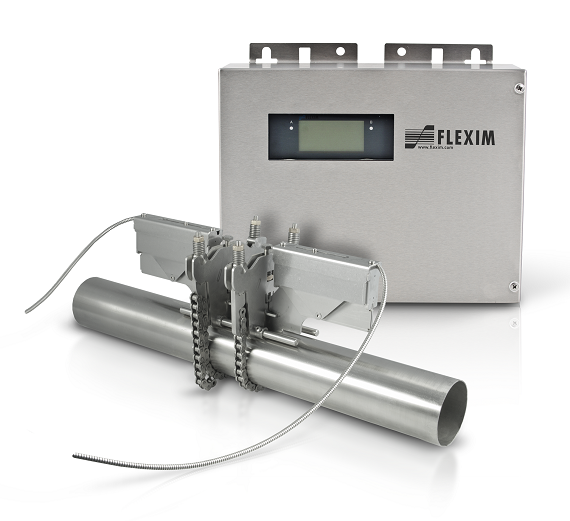

FLEXIM's non-invasive flow measurement technology, in combination with the patented WaveInjector, provides you with the competitive edge – in process control, process management, and environmental protection.
- non-invasive Flow Metering at extreme temperatures from -328°F up to 1166°F.
Flexim Rental Process
Are you in need of temporary flow measurement, or would like to explore Flexim technology before making a purchase?
Contact us for more information on our rental meters and how we can help kickstart your flow measurement process.Flexim Rentals
Liquid Flowmeter
Fluxus F721
The FLUXUS F721 is a technological breakthrough in the ultrasonic clamp-on volume and mass flow measurement of liquids.
- highly sophisticated signal filters, faster than ever processing capacities and advanced measurement algorithms.
- the meter adapts itself automatically to the respective measurement conditions and compensates for flow profile disturbances such as beam dispersal and structure-borne noise, allowing for even more precise and reliable measurements.
- extreme fast measurement cycles enable precise real time monitoring of highly dynamic processes.
Liquid Flowmeter

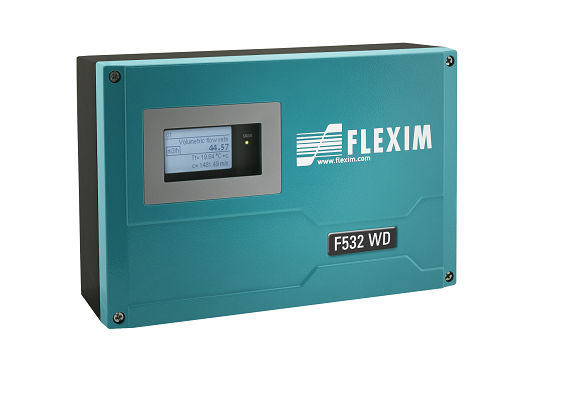

Fluxus WD
The FLUXUS WD Series non-invasive ultrasonic flow meter:
- is the ideal solution for metering points in the drinking water network.
- enables a very simple and cost-effective installation of flow measurement points within an existing water supply network.
- it even measures flow rates as low as 0.03 ft per sec.
- the strong signal output and noise suppression technology make it possible to use the WD Series on all pipe materials, even on such challenging ones as fiber-reinforced plastic (FRP) pipes.
Liquid Flowmeter
Fluxus F831

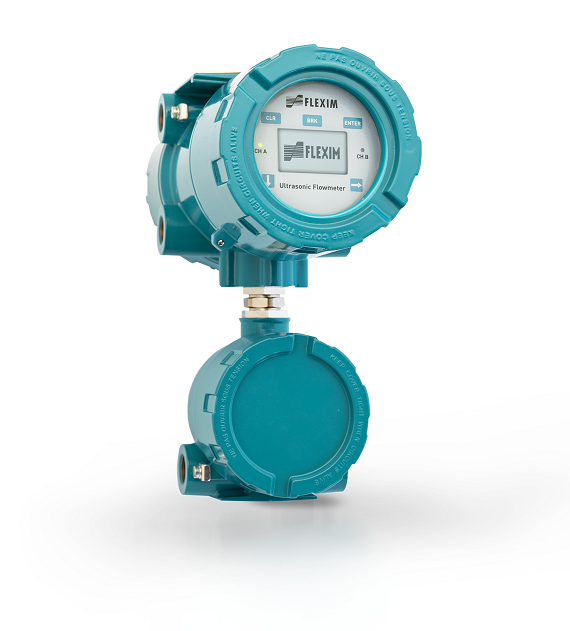

The FLUXUS F831 is FLEXIM's dual channel ultrasonic clamp-on flow meter for bi-directional flow measurement of liquids in hazardous areas (ATEX, IECEx Zone 1 and FM Class I, Div. 1 approved).
- explosion proof housing, intrinsically safe inputs and the corrosion resistant transducers residing outside the pipe wall, but inside the rugged VARIOFIX C mounting fixture, ensuring a permanent contact pressure and high mechanical stability.
- suited for every demanding industrial application in and out of the oil field and the chemical industry.
- comes with carefully matched and temperature compensated transducers (fully ANSI / ASME MFC 5M compliant) providing unmatched zero-point stability and precise bi-directional flow measurement over a wide range of conditions.
Liquid Flowmeter
WaveInjector
FLEXIM's non-invasive flow measurement technology, in combination with the patented WaveInjector, provides you with the competitive edge – in process control, process management, and environmental protection.
- non-invasive Flow Metering at extreme temperatures from -328°F up to 1166°F.
Liquid Flowmeter
Fluxus H831

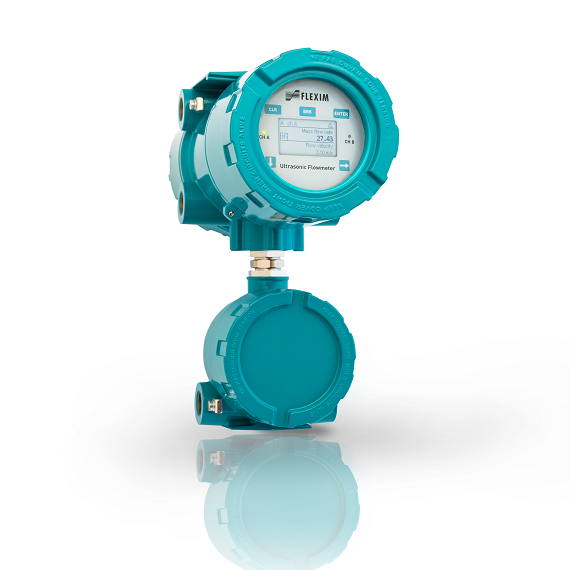

The FLUXUS H831 flow meter is equipped with a hydrocarbon-specific database for a wide range of applications and process conditions ranging from light hydrocarbons to crude oils/refined products to heavy hydrocarbons at refineries, tank farms, oil terminals and transport liquid pipelines.
- only Clamp-on Ultrasonic flow meter certified for installation in Zone 1 ( FM Class 1, Div. 1 to come) hazardous areas.
- ability to report standard volume flows and API determination in the Hydrocarbon Processing Industry.
- built-in HPI computer calculates API gravity, operational density, density at base conditions and kinematic viscosity.
- Volumetric flow rates reported by the meter are automatically compensated for live temperature and pressure inputs according to industry standards ASTM1250, GPA TP25 and D4311.
